Header file for the cub3d project. More...

#include "data_structure.h"
#include <stddef.h>
#include <stdint.h>
#include <unistd.h>
#include <sys/time.h>

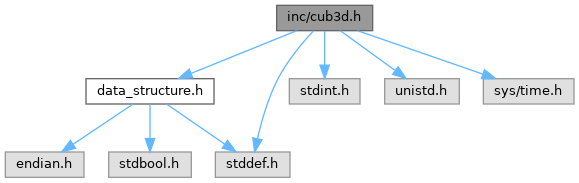

Include dependency graph for cub3d.h:

This graph shows which files directly or indirectly include this file:

Macros
#define	PI 3.141592653589793238462643383279502884197169399375105820974944592307
	PI approximation.

#define	MINIMAP_DEFAULT_VALUE true
	Enable Minimap by default and can be toggled with the 'M' key.

#define	FIELD_OF_VIEW_DEFAULT_VALUE true
	Enable Field of View by default and can be toggled with the 'F' key.

#define	COLLISION_DEFAULT_VALUE true
	Enable Collision by default and can be toggled with the 'C' key.

#define	ENABLE_FILTERS true
	Enable Filters features.

#define	MOUSE_SENSITIVITY_FACTOR 0.001f
	Value used to define the sensitivity of the mouse. This value is multiplied by the delta mouse x to get the turn amount. A higher value will make the mouse more sensitive and will turn faster. Anything higher or lower than 0.001f will be strange.

#define	MOVEMENT_SPEED_TURNING 0.015f
	Value used to define the turning speed of the player. This value is multiplied by the input to get the turn amount. A higher value will make the player turn faster.

#define	MOVEMENT_SPEED_FWD_BWD 0.025f
	Value used to define the movement speed of the player in forward or backward. This value is multiplied by the input to get the amount. A higher value will make the player walk faster.

#define	MOVEMENT_SPEED_LEFT_RIGHT 0.015f
	Value used to define the movement speed of the player when moving left or right. This value is multiplied by the input to get the amount. A higher value will make the player walk faster.

#define	MINIMAP_PLAYER_COLOR 0xffffff00

#define	MINIMAP_PLAYER_LINE_SIGHT_COLOR 0xffffff00

#define	MINIMAP_PLAYER_CONE_SIGHT_COLOR 0xffffaaaa

#define	MINIMAP_FLOOR_COLOR 0xff000000

#define	MINIMAP_WALL_COLOR 0xffffffff

#define	MINIMAP_KEY_COLOR 0xffffff00

#define	MINIMAP_DOOR_COLOR 0xff0000ff

#define	MINIMAP_NUM_TILES_X 15
	Number of tiles on X axis.

#define	MINIMAP_NUM_TILES_Y 15
	Number of tiles on Y axis.

#define	MINIMAP_TILE_SIZE 16

#define	MINIMAP_TILES_X 15

#define	MINIMAP_TILES_Y 15

#define	MINIMAP_PLAYER_SIZE 4

#define	MINIMAP_LINE_OF_SIGHT_FACTOR 2

#define	DEBUG_PRINT_KEYCODE 0
	Enable to print key presses.

#define	DEBUG_PRINT_FPS 0
	Enable if you want to see the FPS.

#define	DEBUG_FPS_REFRESH 0
	Enable to keep the FPS counter on a single line.

#define	DEBUG_PRINT_TEXTURE_SWAP 0
	Enable printing of message to indicate texture swapping.

#define	DEBUG_PRINT_TEXTURE_ALTERED 0
	Enable printing message when a texture is altered with filters.

#define	CROSS_APPLY_SETTINGS 0
	Enable if closing the settings window should behave as 'Enter'.

#define	ESCAPE_APPLY_SETTINGS 0
	Enable pressing Esc in the settings menu should behave as 'Enter'.

Functions
int	cub3d (int argc, char **argv)
	Main function of the cub3d project.

int	cub_read_args (int argc, char *argv, t_args args)
	Reads and verifies the arguments passed to the program.

char **	fill_config_region (t_map *map)
	Fill the config region of the file.

char **	fill_map_region (t_map *map)
	Fill the map region of the file.

char **	read_file_lines (t_map map, char map_name)
	Read the map file line by line and return an array of strings.

size_t	count_file_lines (char *file_name)
	Simple function to count the number of lines in a file.

void	ft_exit (t_mlx mlx, t_map *map)
	Exit the program.

int	ft_mlx_init (t_data *data)
	Initialize the mlx structure, create settings window, and load game.

void	ft_mlx_end (t_mlx *mlx)
	Close and free the mlx structure.

void *	ft_settings (t_mlx *mlx)
	Generate the window settings for the program.

enum e_screen_size	circle_state (int x, int y)
	Return an enum according to selected circle using coordinates.

int	ft_set_screen_size (t_mlx *mlx, enum e_screen_size size)
	Set screen size according to an enum.

void	ft_free_settings (t_mlx *mlx)
	Free all the settings variables.

void	settings_hooks (t_data *data)
	Set the settings hooks on the settings window.

void	state_machine (int keycode, t_mlx *mlx)
	State machine for the settings window.

int	cub_keydown_hook (int keycode, void *param)
	Hook when a key is pressed.

int	cub_keyup_hook (int keycode, void *param)
	Hook when a key is released.

int	cub_mouse_click_hook (int button, int x, int y, void *param)
	Hook when the mouse is moved while clicking.

int	cub_mouse_hook (int x, int y, void *param)
	Hook when the mouse is moved.

int	hook_settings_handle_mouse_click (int button, int x, int y, void *param)
	Hook when the mouse is moved while clicking for the settings.

int	hook_settings_handle_mouse_motion (int x, int y, void *param)
	Hook when the mouse is moved for the settings.

int	hook_settings_close_window (void *param)
	Hook used to close window or set the window size if MACRO Enabled.

int	hook_settings_handle_keypress (int keycode, void *param)
	Handle mouse click in the settings window.

t_map	ft_map_check_dimensions (t_map map, char map_name)
	Check the map structure and try to open the map file. sets error to -1 if an error occurred.

t_map	ft_check_config (t_map *map)
	Check if the config is properly formatted or not.

t_map	ft_check_floor_ceiling (t_map *map)
	Check the floor and ceiling colors.

size_t	is_config_line (char *line)
	Return a positive number if a config line is detected.

t_map	check_map_chars_borders (t_map *map)
	Check if the map has only acceptable characters and if there is borders everywhere, as it should be.

t_coordinates	find_position (t_map map, const char charset)
	Find the position of the player with charset in the map.

int	validate_map (t_map *map)
	Validate if the map has unclosed holes or an unfinished outer layer.

bool	is_only_whitespace (const char *str)
	Check if the string contains only whitespace characters.

void	suppress_newlines (char **lines)
	Suppress newlines in the given lines.

int	is_walkable (char c)
	Check if a character is walkable or not.

int	is_in_bounds (char **map, size_t y, size_t x)
	Check if a position is in bounds of map or not.

int	safe_open (char *file_name)
	Try to open the map file specified by map_name.

int	safe_close (int *fd)
	Close safely the file descriptor Modify the file descriptor to -1 after closing it.

int	try_to_open_close_file (char *file_name)
	Try to open the file specified by file_name.

size_t	count_array_length (char **array)
	Count the number of strings that an array have Should absolutely be NULL-Terminated.

void	ft_free_all (t_data *data)
	Free all the memory allocated for the data structure.

void	ft_free_file (t_map *map)
	Free the strings of the file.

void	ft_free_textures (t_mlx mlx, t_textures textures)
	Free all the textures stored in mlx structure and map struct.

void	ft_free_textures_path (t_map *map)
	Free the path (name) of the textures in memory.

void	ft_free_map (t_map_raoul *map)
	Free the map structure.

uint64_t	get_time_ms (void)
	Get time in milliseconds.

uint64_t	timeval_to_us (const struct timeval *tv)
	Convert a timeval in microseconds.

uint16_t	count_fps (bool print)
	Count the FPS and print it to the console. It will print the FPS every second if DEBUG_PRINT_FPS is set to 1.

Detailed Description

Header file for the cub3d project.

Contains all function prototypes used in the project.
